EED磁芯
EED磁芯
 |  | ||||||||||||||
 |  |  |  |  | |||||||||||

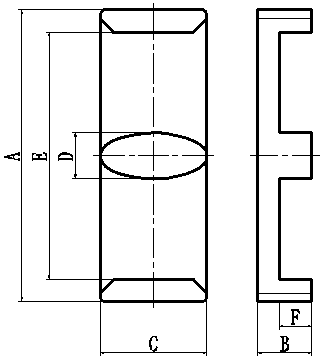

| Fig.1 | Fig.2 | Fig.3 | Fig.4 | Fig.5 | Fig.6 | Fig.7 | |||||||||
| 规格 | 图形Fig. | 尺寸(mm) | 有效参数Effective parameter | 电感系数AL(nH/N2) | 重量(克/付) | ||||||||||
| A | B | C1 | C2 | D | E/E1 | E2 | F | Ae(mm2) | Le(mm） | Ve(mm3) | BP44 | BP95 | Weight(g/set) | ||
| EED22/14.5 | 5 | 22.00±0.40 | 7.25±0.15 | 14.0±0.30 | 12.0±0.20 | 7.00±0.20 | 17.30min | 14.40min | 4.70±0.20 | 72.00 | 38.00 | 2736.0 | 3600±25% | 4500±25% | 15.60 |
| EED32/13 | 7 | 32.00±0.50 | 6.7±0.15 | 28.00±0.30 | 18.0±0.25 | 10.0±0.20 | 27.2±0.5 | 22.2±0.5 | 3.75±0.2 | 162.60 | 37.30 | 6065.0 | 5900±25% | 7100±25% | 41.00 |
| EED33/17S | 2 | 33.80±0.50 | 8.35±0.15 | 16.50±0.20 | 8.40±0.15 | 8.45±0.15 | 28.8±0.5 | _ | 5.85±0.15 | 76.70 | 52.60 | 4038.0 | 3600±25% | 4500±25% | 25.80 |
| EED34/20 | 3 | 34.00±0.65 | 10.15±0.20 | 37.40±0.60 | 23.20±0.40 | 9.70±0.30 | 29.40min | 23.30min | 7.30±0.20 | 202.5 | 59.50 | 12030.9 | 6800±25% | 8500±25% | 72.20 |
| EED36.8/7.35/14 | 3 | 36.80±0.50 | 7.45±0.15 | 14.00±0.20 | - | 6.00±0.20 | 30.5±0.4 | _ | 4.60±0.15 | 75.00 | 52.00 | 3900.0 | 3200±25% | - | 23.50 |
| EED36/17S | 2 | 36.80±0.50 | 8.20±0.15 | 18.50±0.20 | 9.60±0.15 | 9.60±0.15 | 31.8±0.5 | _ | 5.70±0.15 | 92.40 | 57.20 | 5288.0 | 4000±25% | 5000±25% | 30.90 |
| EED38/14 | 4 | 38.20±0.40 | 7.10±0.15 | 14.00±0.30 | _ | 6.00±0.20 | 32.2+0.7/-0.3 | _ | 4.30±0.15 | 74.31 | 54.67 | 4062.5 | 3500±25% | 4400±25% | 23.40 |
| EED40/8.1 | 1 | 40.0±0.40 | 4.05±0.15 | 24.00±0.35 | 14.0±0.20 | 8.50±0.15 | 35.0±0.4 | _ | 2.05±0.15 | 119.20 | 45.00 | 5364.0 | _ | 7000±26% | 29.00 |
| EED41/16 | 1 | 41.0±0.50 | 8.20±0.15 | 23.00±0.40 | 11.5±0.3 | 11.5±0.30 | 36.0±0.5 | - | 5.70±0.20 | 118.00 | 60.70 | 7174.3 | - | 5300±25% | 42.90 |
| EED42.7/7.3/15 | 3 | 42.7±0.50 | 7.30±0.15 | 15.00±0.30 | - | 7.0±0.20 | 39.7±0.5 | 36.2±0.5 | 4.40±0.15 | 87.20 | 56.40 | 4918.1 | 3500±25% | - | 28.30 |
| EED48.5/6.7 | 5 | 48.50±0.60 | 3.35±0.15 | 40.00±0.40 | 30+0.3/-0.4 | 6.50±0.25 | 42.5±0.6 | _ | 1.55±0.15 | 139.97 | 48.86 | 6838.9 | _ | 8500±25% | 44.00 |
| EED50/07 | 6 | 50.0±0.70 | 3.50±0.10 | 50.00±0.70 | 35.0±0.50 | 11.0±0.3 | 43.0±0.7 | _ | 1.30±0.15 | 234.50 | 49.00 | 11490.5 | _ | 13500±25% | 68.00 |
| 注:AL值测试条件:1KHz、 0.3V、 100Ts (Remark:Testing conditon for AL:1KHz、 0.3V、 100Ts ) | |||||||||||||||
| 以上为本公司标准规格，可根据客户特殊要求进行设计。(The above is the usually type，we can redesign according to costomer′s request) | |||||||||||||||
