DS(POT)型磁芯
DS(POT)型磁芯
 |  |

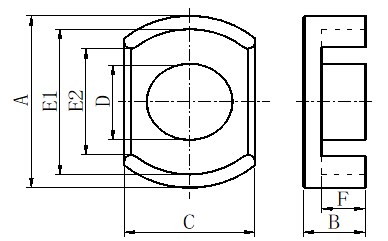

| 图1 | 图2 |
| 规格 | 图 | 尺寸(mm) | 有效参数 | 电感系数AL(nH/N2) | 重量 | ||||||||||
| A | B | C | D | E1 | E2 | F | C 1(mm-1) | A e(mm2) | Le (mm） | Ve (mm3) | BP44 | BP95 | (克/付) | ||
| DS(POT)2816 | 1 | 28.0±0.50 | 8.10±0.20 | 19.00±0.40 | 11.10±0.20 | 22.20min | 15.40min | 5.20±0.20 | 0.38 | 107.00 | 41.60 | 4451.20 | 5200±25% | 6800±25% | 27.80 |
| DS(POT)3012 | 1 | 30.0±0.60 | 6.00±0.20 | 20.30±0.40 | 13.30±0.20 | 25.00min | 18.20min | 3.20±0.20 | 0.29 | 122.10 | 36.00 | 4395.60 | 6500±25% | 9000±25% | 26.10 |
| DS(POT)3016 | 1 | 30.0±0.60 | 8.10±0.20 | 20.30±0.40 | 13.30±0.20 | 25.00min | 18.20min | 5.30±0.20 | 0.36 | 122.50 | 43.60 | 5341.00 | 6000±25% | 7800±25% | 32.40 |
| DS(POT)3019 | 1 | 30.0±0.60 | 9.55±0.20 | 20.30±0.40 | 13.30±0.20 | 25.00min | 18.20min | 6.75±0.20 | 0.40 | 122.70 | 48.90 | 6000.03 | 5700±25% | 7200±25% | 35.70 |
| DS(POT)3030-1 | 1 | 30.0±0.60 | 15.00±0.20 | 20.30±0.40 | 13.30±0.20 | 25.00min | 18.20min | 12.2±0.20 | 0.55 | 126.60 | 69.36 | 8781.00 | 4000±25% | 5300±25% | 49.60 |
| DS(POT)3216 | 1 | 31.8±0.50 | 8.50±0.20 | 20.20±0.40 | 13.30±0.20 | 26.30min | 19.30min | 5.50±0.20 | 0.36 | 128.30 | 46.01 | 5903.08 | 5500±25% | 6800±25% | 35.30 |
| DS(POT)3312 | 1 | 33.3±0.50 | 6.10±0.15 | 23.70±0.40 | 13.50±0.20 | 26.30min | 18.50min | 3.25±0.20 | 0.25 | 147.00 | 36.95 | 5430.10 | 7000±25% | 9800±25% | 35.00 |
| DS(POT)3313 | 1 | 33.3±0.50 | 6.50±0.15 | 23.70±0.40 | 13.50±0.20 | 26.30min | 18.50min | 3.75±0.20 | 0.26 | 147.40 | 38.20 | 5630.68 | 6500±25% | 8200±25% | 36.85 |
| DS(POT)3316 | 1 | 33.3±0.50 | 8.50±0.15 | 23.70±0.40 | 13.50±0.20 | 26.80±0.4 | 18.50min | 5.70±0.20 | 0.30 | 148.40 | 44.50 | 6603.80 | 6000±25% | 7800±25% | 42.10 |
| DS(POT)3319 | 1 | 33.2±0.50 | 9.55±0.15 | 23.70±0.40 | 13.50±0.20 | 26.80±0.4 | 18.50min | 6.75±0.20 | 0.35 | 147.40 | 51.40 | 7576.36 | 5800±25% | 7200±25% | 45.70 |
| DS(POT)3414 | 1 | 34.0±0.50 | 7.15±0.20 | 23.70±0.40 | 13.50±0.20 | 27.00min | 19.60min | 4.35±0.20 | 0.28 | 147.00 | 41.55 | 6107.40 | 6500±25% | 8500±25% | 38.00 |
| DS(POT)3419 | 1 | 34.0±0.50 | 9.50±0.20 | 23.70±0.40 | 13.50±0.20 | 27.00min | 19.60min | 6.60±0.20 | 0.35 | 147.40 | 52.00 | 7664.80 | 5500±25% | 7200±25% | 44.80 |
| DS(POT)3719 | 2 | 37.0±0.60 | 9.60±0.20 | 27.50±0.45 | 15.40±0.25 | 30.70±0.5 | 20.0±0.5 | 6.30±0.20 | 0.28 | 189.00 | 52.50 | 9922.50 | 10000±25% | 12000±25% | 56.80 |
| DS(POT)4020 | 1 | 39.8±0.50 | 10.10±0.20 | 28.30±0.35 | 16.0±0.25 | 32.70min | 20.00min | 6.50±0.20 | 0.27 | 208.00 | 55.80 | 11606.4 | 7800±25% | 9200±25% | 69.30 |
| DS(POT)4027 | 1 | 39.8±0.50 | 13.75±0.20 | 28.30±0.35 | 16.0±0.25 | 32.70min | 20.00min | 10.15±0.20 | 0.33 | 208.00 | 69.20 | 14393.6 | 6500±25% | 7800±25% | 83.80 |
| DS(POT)4027-1 | 1 | 39.8±0.50 | 13.75±0.20 | 28.30±0.35 | 16.0±0.25 | 33.00min | 23.00min | 10.15±0.20 | 0.34 | 205.20 | 69.60 | 14282.0 | 6500±25% | 7800±25% | 83.90 |
注:
AL值测试条件:1KHz、 0.3V、 10Ts
以上为本公司标准规格，可根据客户特殊要求进行设计。
