Z磁芯
Z磁芯
|
|
|
|

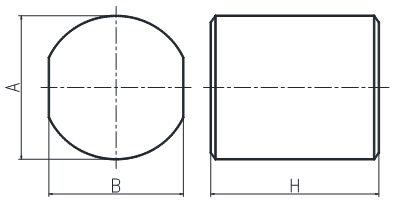

| 图1 | 图2 | 图3 | 图4 |
| 规格 | 图 | 尺寸(mm) | 重量 | |
| OD/A/B | H | (克/付) | ||
| Z11.2*3.0 | 1 | 11.2±0.20 | 3.00±0.05 | 1.70 |
| Z12.00X1.5 | 1 | 12.00±0.20 | 1.50±0.05 | 1.50 |
| Z12.00X2.0 | 1 | 12.00±0.20 | 2.00±0.05 | 1.50 |
| Z12.00X2.5 | 1 | 12.00±0.20 | 2.50±0.05 | 1.90 |
| Z12.00X3.0 | 1 | 12.00±0.20 | 3.00±0.05 | 1.95 |
| Z12.00X4.0 | 1 | 12.00±0.20 | 4.00±0.05 | 2.50 |
| Z13.45X2.0 | 1 | 13.45±0.25 | 2.00±0.05 | 1.70 |
| Z13.45X2.5 | 1 | 13.45±0.25 | 2.50±0.05 | 2.10 |
| Z13.45X3.0 | 1 | 13.45±0.25 | 3.00±0.05 | 2.50 |
| Z13.45X5.5 | 1 | 13.45±0.25 | 5.50±0.05 | 4.10 |
| Z13.45X6.0 | 1 | 13.45±0.25 | 6.00±0.05 | 4.50 |
| Z13.45X6.5 | 1 | 13.45±0.25 | 6.50±0.05 | 4.86 |
| Z13.45X7.0 | 1 | 13.45±0.25 | 7.00±0.05 | 5.20 |
| Z14.30X2.5 | 1 | 14.30±0.25 | 2.50±0.05 | 2.35 |
| Z14.30X3.0 | 1 | 14.30±0.25 | 3.00±0.05 | 2.77 |
| Z14.30X3.5 | 1 | 14.30±0.25 | 3.50±0.05 | 3.26 |
| Z15.00X2.5 | 1 | 15.00±0.30 | 2.50±0.05 | 2.60 |
| Z15.00X3.5 | 1 | 15.00±0.30 | 3.50±0.05 | 3.65 |
| Z15.00X5.0 | 1 | 15.00±0.30 | 5.00±0.05 | 5.25 |
| Z15.00X7.15 | 1 | 15.00±0.30 | 7.15±0.05 | 6.60 |
| Z15.00X7.4 | 1 | 15.00±0.30 | 7.40±0.05 | 6.85 |
| Z16.00X2.0 | 1 | 16.00±0.30 | 2.00±0.05 | 2.36 |
| Z16.00X2.5 | 1 | 16.00±0.30 | 2.50±0.05 | 2.92 |
| Z17.00X3.0 | 1 | 17.00±0.35 | 3.00±0.05 | 3.70 |
| Z17.00X5.25 | 1 | 17.00±0.35 | 5.25±0.05 | 6.50 |
| Z17.00X10.0 | 1 | 17.00±0.35 | 10.0±0.05 | 11.95 |
| Z20.00X5.0 | 1 | 20.00±0.35 | 5.00±0.05 | 9.15 |
| Z13.5*11 | 2 | A:13.5±0.25 , B:11.0±0.20 | 2.00±0.05 | 1.30 |
| Z22*30*20 | 3 | A:22+0.25/-0.4 , B:20±0.3 | 20.00±0.40 | 37.20 |
| Z22*30*25 | 3 | A:22+0.25/-0.4 , B:20.0±0.3 | 25.00±0.40 | 46.00 |
| Z32.0X17.0X5.0 | 4 | A:32±0.5 , B:17±0.2 | 5.60±0.10 | 13.50 |
注:
AL值测试条件:1KHz、 0.3V、 10Ts
以上为本公司标准规格，可根据客户特殊要求进行设计。
